Order and customer pages

1. Order actionsCopy Anchor Link

An ActionPool item (pool order_actions) in etc/adminhtml/di.xml adds a button to the order page. condition names a class that implements OrderActionConditionInterface, so the button shows only when it applies:

<item name="create_return" xsi:type="array">
    <item name="label" xsi:type="string" translate="true">Create return</item>
    <item name="route" xsi:type="string">light/returns/new</item>
    <item name="params" xsi:type="array">
        <item name="order_id" xsi:type="string">entity_id</item>
    </item>

public function isAvailable(OrderInterface $order): bool;

The keys: label; route with params (a route parameter mapped to an order field: entity_id, increment_id, customer_id or store_id), or id and attributes for a JS action; icon, tone, resource, module, slot (more or secondary), sort_order (core uses 5 to 90) and condition. A condition that throws is logged and drops its action. A route in the route map gets mrx_stock=1, so an action that opens a stock screen keeps the Light shell around it.

2. TimelinesCopy Anchor Link

A class that implements the Orders or Customers TimelineProviderInterface adds lines to the order's or customer's history. Register it in the Timeline argument providers of Orders (pool order_timeline) or Customers (pool customer_timeline). Returns adds its lines to the customer timeline:

<item name="returns" xsi:type="object">Mrx\Returns\Model\Customer\ReturnsTimeline\Proxy</item>

public function getEvents(OrderInterface $order): array;

A link on a line takes external for a URL outside the admin; unsafe URLs show as text. Light merges your lines with core's before it sorts them. When the line must also show in the stock order history and outlive your module, write it with Mrx\Orders\Model\Service\History::addEvent() instead. A Customers provider gets the customer as its argument: don't inject CustomerPageContextInterface into it or into the services it builds, which would be a circular dependency. A customer mail about the order gets a View email button on its own line, which opens the copy Light kept of it; a provider line can't open that viewer, so for a mail of yours write a notified history row instead (Copies of sent mails).

3. Totals rowsCopy Anchor Link

A class that implements TotalsProviderInterface adds rows to the order totals, registered in the TotalsPool argument providers (pool order_totals). When the rows and the grand total differ by more than 0.005, Light adds "Other charges" (other_charges) or "Other adjustments" (other_adjustments) itself, so the totals always add up. The codes subtotal, discount, shipping, tax, grand_total, other_charges and other_adjustments are core's: a row that reuses one, or whose amount is not a finite number, drops every row of its provider, so take a code with your module's prefix. Light uses fpt itself: while Magento_Weee is on, a fixed product tax gets its own row after the subtotal, and the subtotal no longer holds it.

public function getRows(OrderInterface $order): array;

4. A card with its own controllerCopy Anchor Link

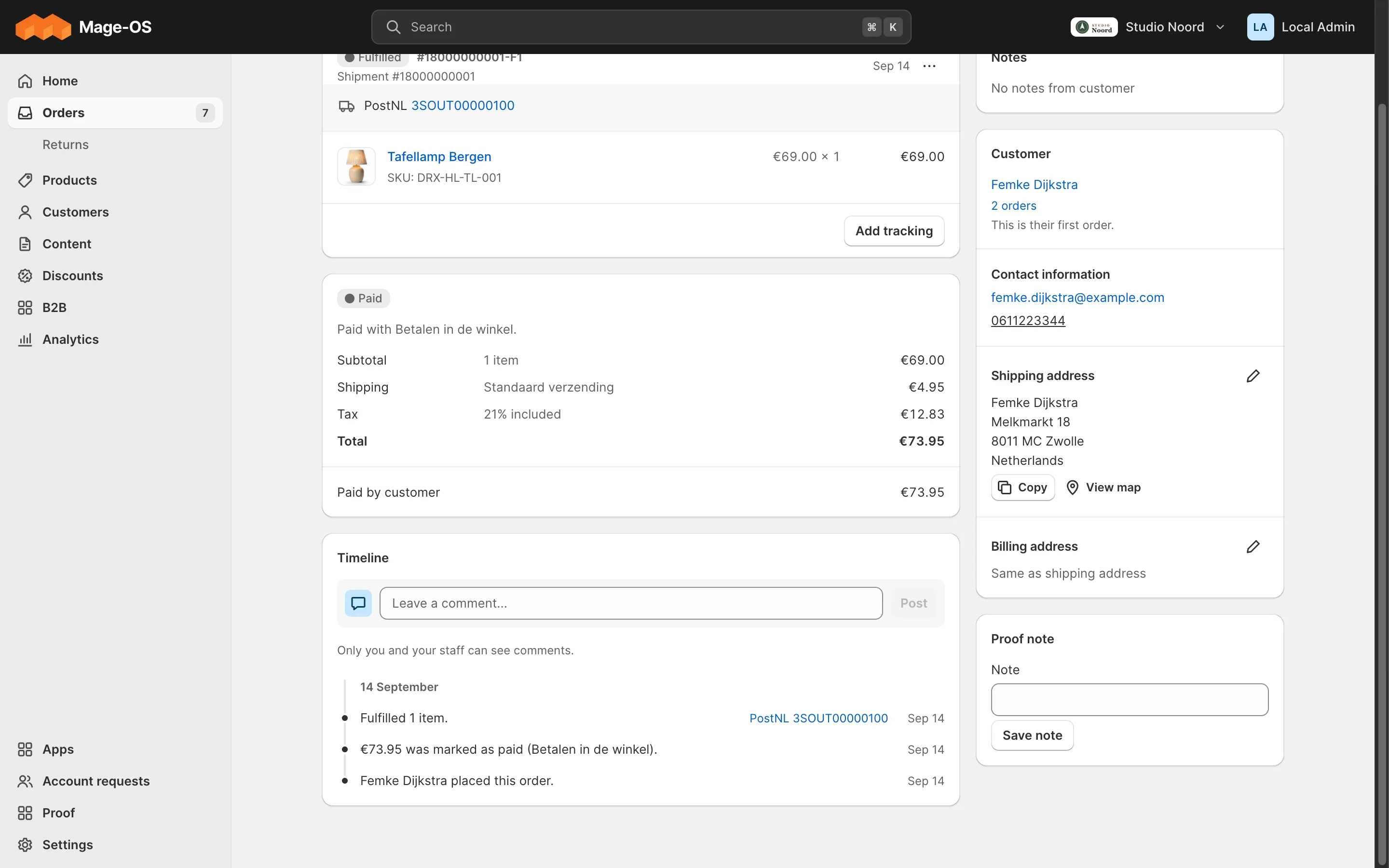

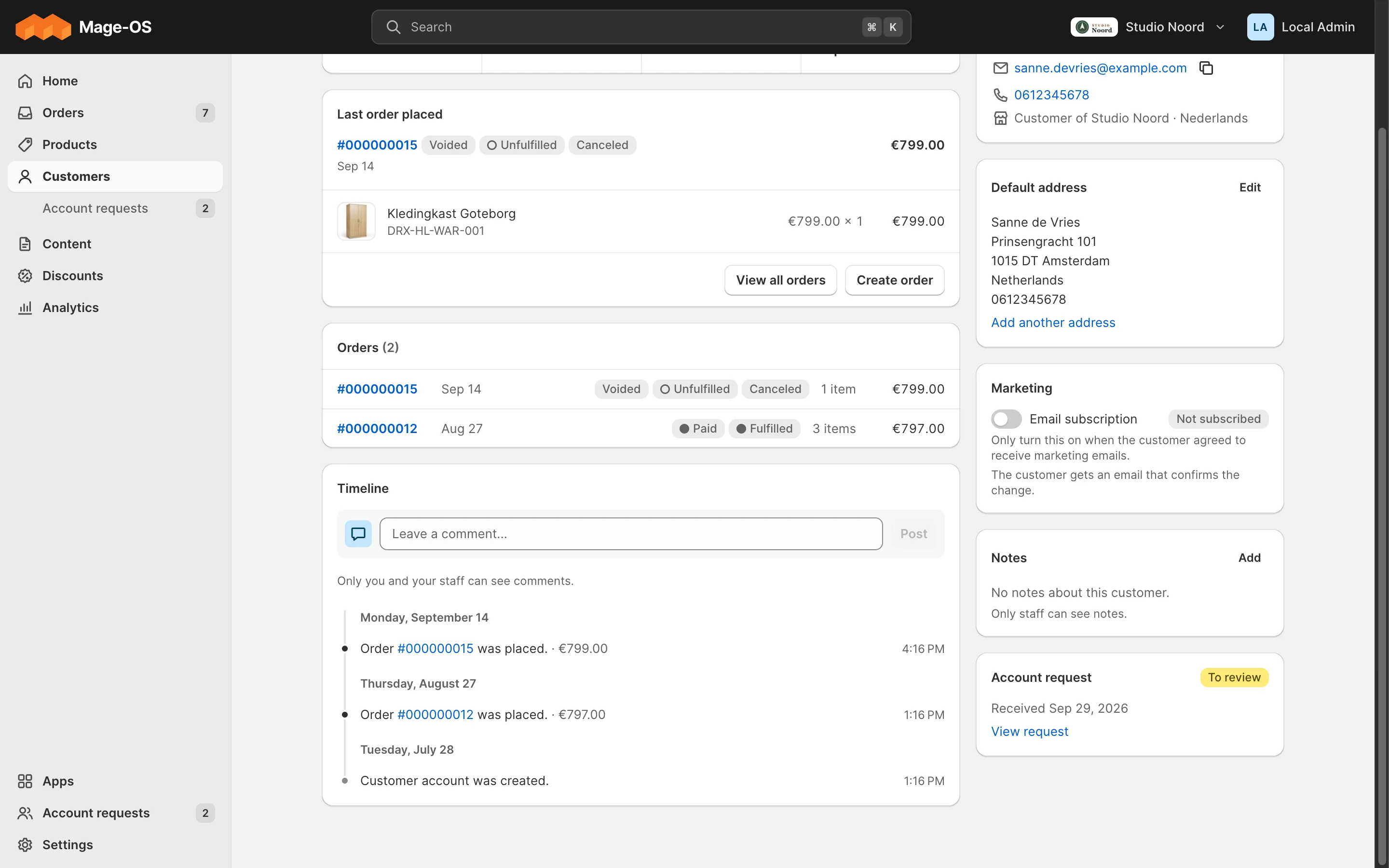

Order and customer pages have no form pipeline. The order page has four containers, mrx.order.main.top (for what needs action), mrx.order.main.before_timeline, mrx.order.aside.top and mrx.order.aside.bottom; the customer page has mrx.customer.main.bottom and mrx.customer.aside.bottom. A card there gets the page's order or customer from OrderPageContextInterface or CustomerPageContextInterface, posts to its own controller, and sets aclResource, so an admin without the resource never sees a link to a page they can't open:

<referenceContainer name="mrx.order.aside.bottom">

public function getOrder(): ?OrderInterface;

5. CarriersCopy Anchor Link

A carrier is an item in the pool carriers (an argument of Mrx\Orders\Model\Carrier\Carriers, global area). Light recognises the carrier from a tracking code, builds the tracking link, and offers the carrier in the Ship items form. Light for the Netherlands (Mrx_CountryNl) adds PostNL this way:

<item name="postnl" xsi:type="array">
    <item name="label" xsi:type="string">PostNL</item>
    <item name="patterns" xsi:type="array">
        <item name="domestic" xsi:type="string">^3S[A-Z0-9]{8,20}$</item>
        <item name="international" xsi:type="string">^[A-Z]{2}[0-9]{9}NL$</item>
    </item>
    <item name="tracking_url" xsi:type="string">https://jouw.postnl.nl/track-and-trace/{code}-{country}[-{postcode}]</item>
    <item name="sort_order" xsi:type="number">10</item>
    <item name="select_order" xsi:type="number">10</item>
</item>

• The item's key (postnl) is the carrier's code, a string.
• patterns are regular expressions for the tracking code. Detection tries the carriers by sort_order, and the first match wins.
• tracking_url fills {code}, {country} and {postcode}, and drops a [bracketed] part whose value is empty.
• The Ship items form offers the carriers that have a select_order, in that order. A carrier without one is detected but not offered.
• disabled and module work as in every pool; a null item removes a carrier.

6. Test payments and refundsCopy Anchor Link

A payment module tells Orders that a payment was made in its test mode, and Orders warns for any provider. Store the mode in the payment's additional information under Mrx\Orders\Api\PaymentMode::INFO_KEY, with PaymentMode::TEST or PaymentMode::LIVE. Mrx_PaymentsMollie does it when Mollie reports the payment:

$order->getPayment()?->setAdditionalInformation(PaymentMode::INFO_KEY, $mode === ApiKey::MODE_TEST ? PaymentMode::TEST : PaymentMode::LIVE);

While the order is open, the order page shows "Test payment: no money received" in the container mrx.order.main.top, naming the provider by the label of its payment_providers item (Payment providers). The orders list gets a "Test payment" column after "Payment", hidden until an open order was paid in test mode; it comes from Mrx\Orders\Model\IndexTable\TestPayments, which Orders registers in the pool table_extensions for the list orders. A provider adds neither. The count that decides whether the column shows is cached for up to an hour; an order save that changes the count (a test order placed or changing state, a test mark set or removed) drops that cache, so save the order through Magento after you set the mode, as Mollie's and Pay.'s own handling does. A mode written straight to the database shows on the order page at once and in the list within the hour.

A refund from the order page fails in Magento's RefundInvoice with "Could not save a Creditmemo", whatever went wrong. A payment module that refuses a refund sets one sentence on Mrx\Orders\Api\RefundReasonInterface before it throws, and the refund then fails with that sentence:

$this->refundReason->set((string)$message);
throw new LocalizedException($message);
