Locations and pickup

1. Read the locationsCopy Anchor Link

Mrx\Locations\Api\LocationsInterface (@api since 0.2.0) answers five questions: are Magento's inventory modules on (isAvailable()), does the shop keep stock per location (isMultiLocation()), the locations in shipping order (getLocations()), the one the shop ships from first (getMain()) and the locations a channel sells from:

public function getForChannel(int $websiteId): array;

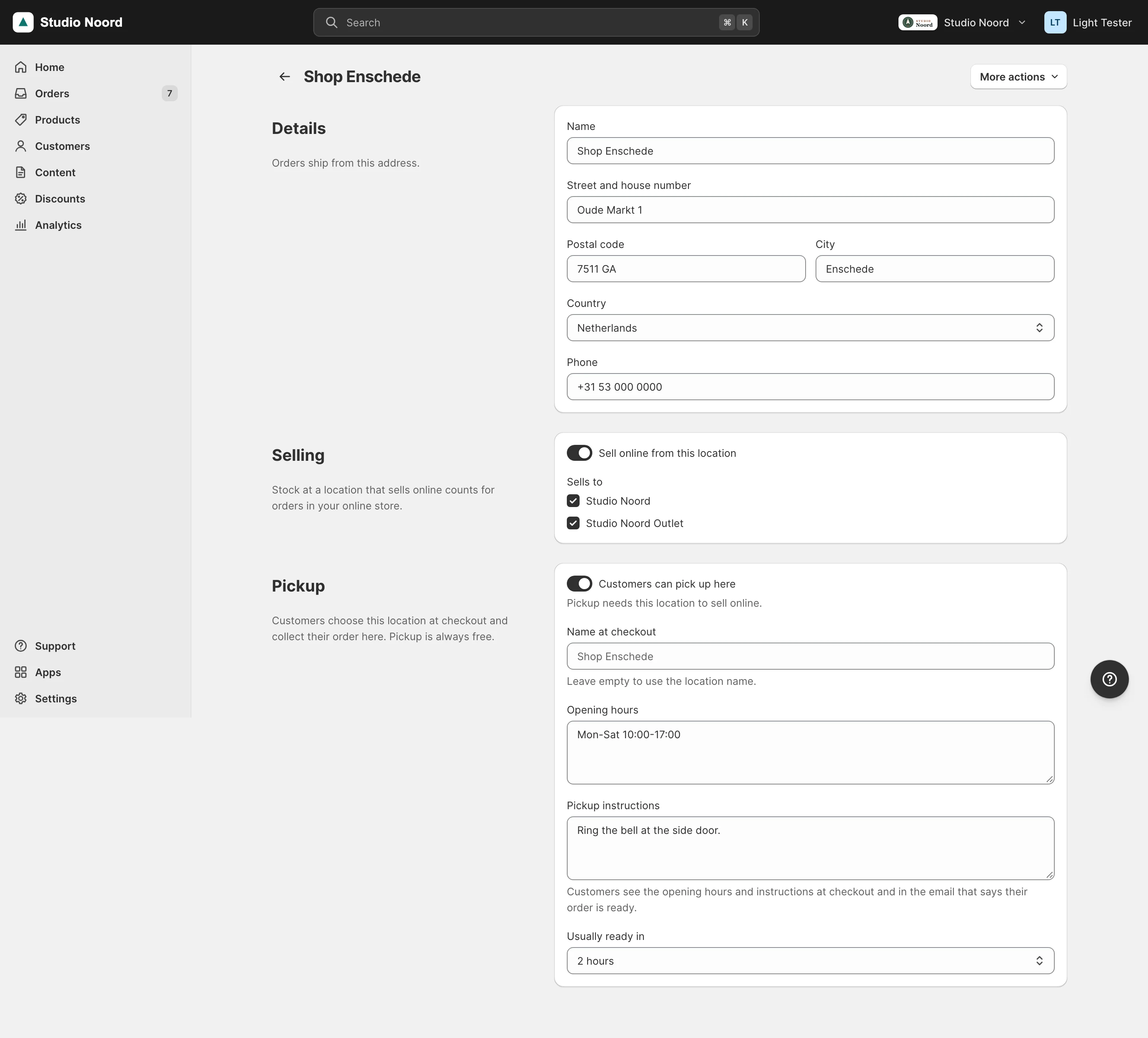

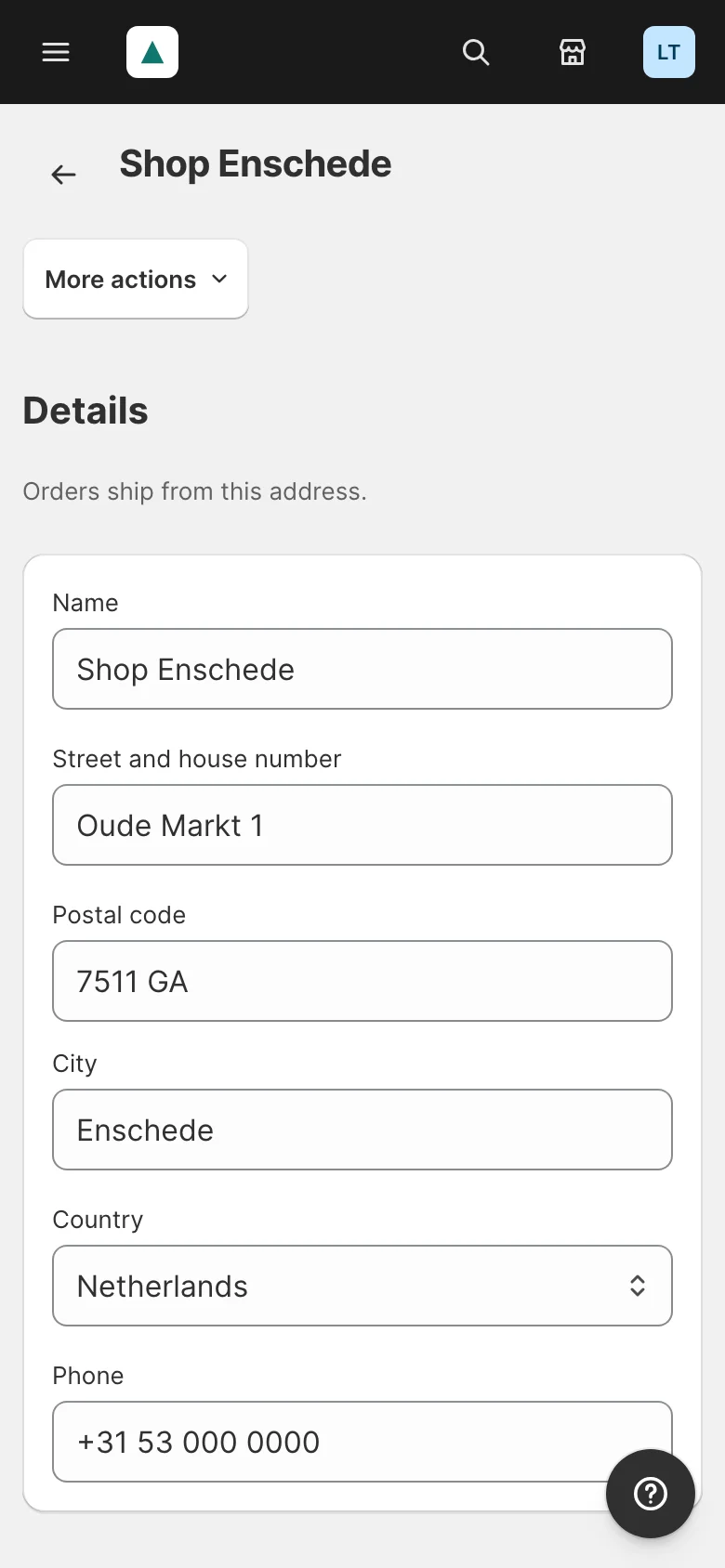

Each location is a read-only Mrx\Locations\Api\Data\LocationInterface: code (the MSI source code), name, address lines, phone, whether it is enabled, sells online and offers pickup, the name at checkout, opening hours, pickup instructions, "Usually ready in" (1h, 2h, 4h, 24h, 2-4d) and its channels. Change a location through MSI's SourceRepositoryInterface or Settings > Locations; the read model never writes. API reference lists every member.

2. Simple mode and locations modeCopy Anchor Link

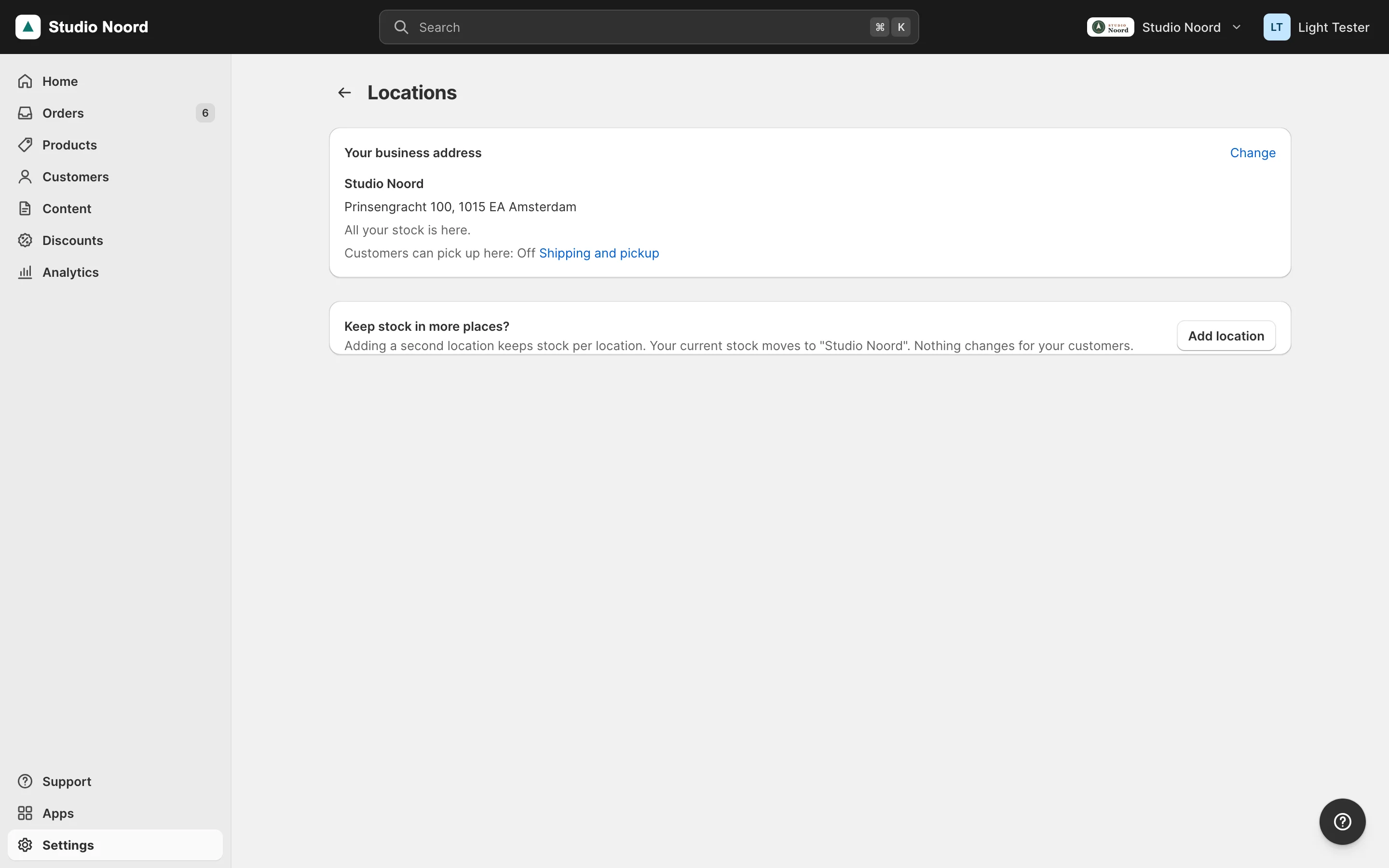

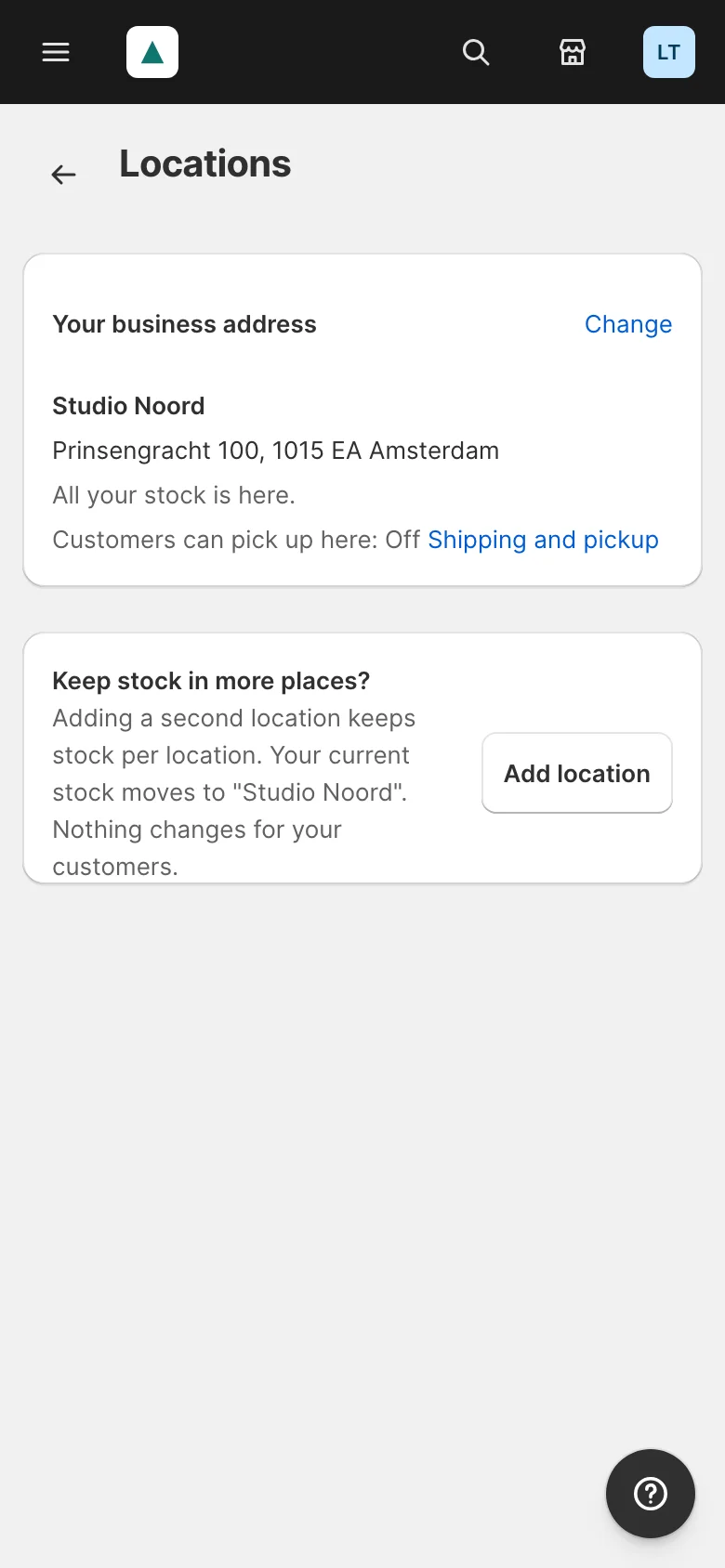

isMultiLocation() is false while MSI is off, or on with one enabled source. That is simple mode: one location, code '', built from Business details (general/store_information/*), and pickup is Light's own carrier at the business address (carriers/mrxpickup). Every Light screen and every write is then the one-quantity one: no location select, no "Ships from", nothing that says location outside Settings > Locations. Light's own counters branch on it the same way:

return $this->locations->isMultiLocation() ? $this->manager->oldLocationItems() : 0;

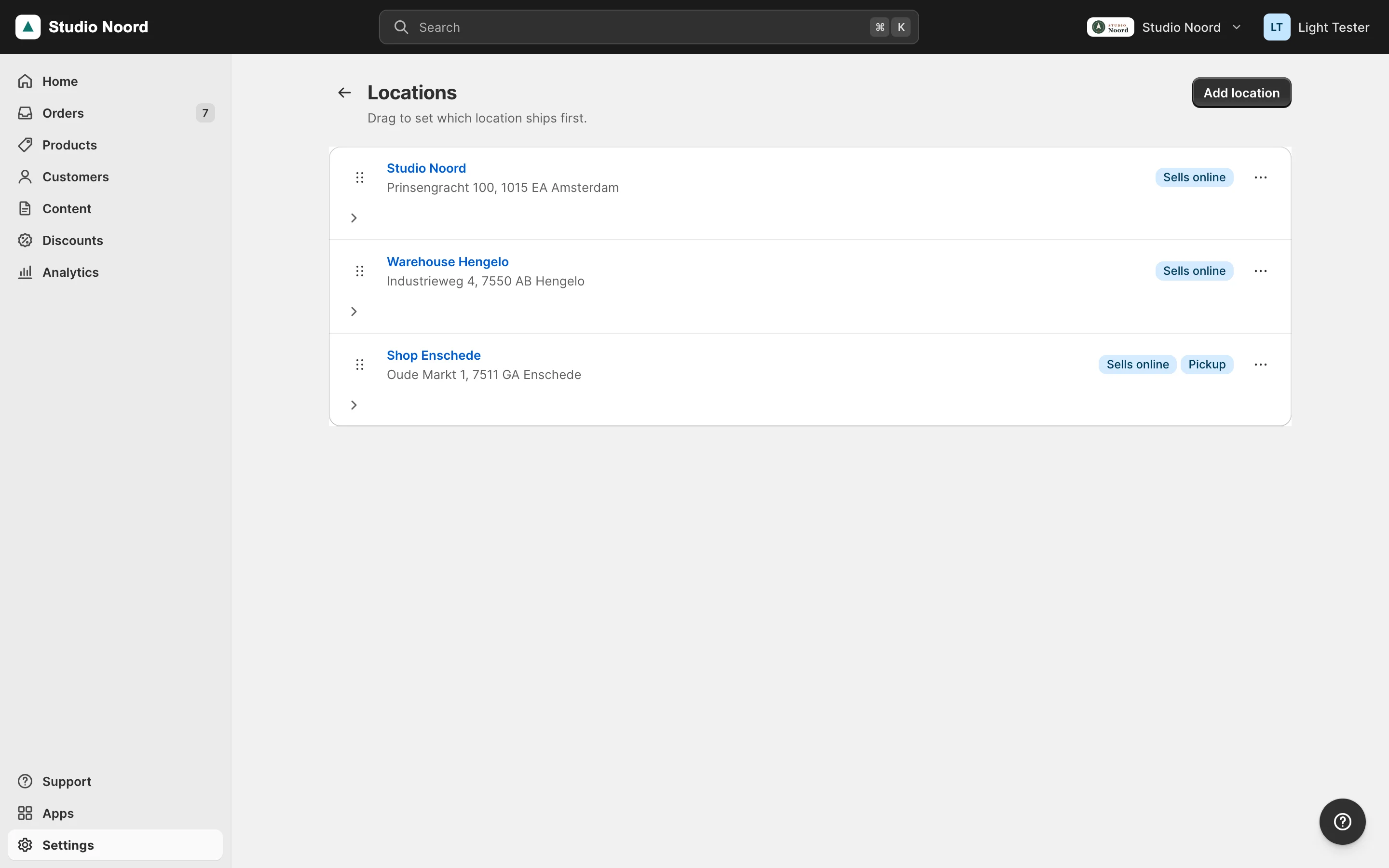

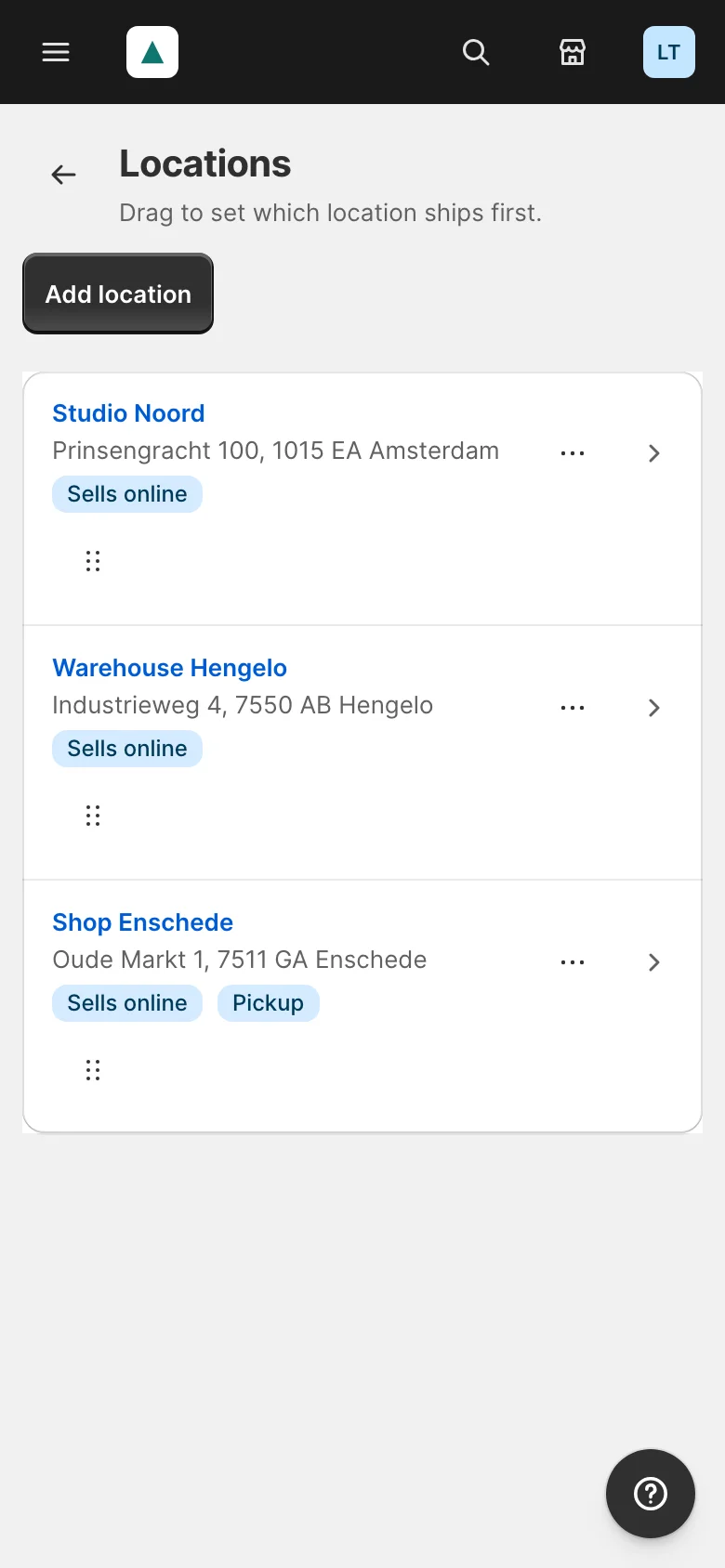

Locations mode starts with the merchant's first "Add location". Every enabled source except Magento's default source is then a location, in the drag order of Settings > Locations. There is no way back to simple mode: MSI can't delete a source or disable default, and Light offers no step back.

A pool item that only belongs to a shop with MSI names Magento_InventoryApi as its module, so ModuleGate drops it while the inventory modules are off. Settings > Locations registers its tile that way:

<item name="locations" xsi:type="array">
    <item name="label" xsi:type="string" translate="true">Locations</item>
    <item name="description" xsi:type="string" translate="true">Where you keep stock and where customers pick up</item>
    <item name="icon" xsi:type="string">location</item>
    <item name="route" xsi:type="string">light/settings/locations</item>
    <item name="page" xsi:type="string">locations</item>
    <item name="module" xsi:type="string">Magento_InventoryApi</item>
    <item name="section" xsi:type="string">store</item>
    <item name="sort_order" xsi:type="number">40</item>
</item>

The settings_pages item locations (Mrx\Locations\Model\Page\Locations) carries #[RequiresModule], so light/settings/locations answers 404 without MSI. Use the same two gates for your own items and classes (Versioning).

3. What Light writes, and whereCopy Anchor Link

Light keeps every number where MSI keeps it, so a module that reads MSI keeps working:

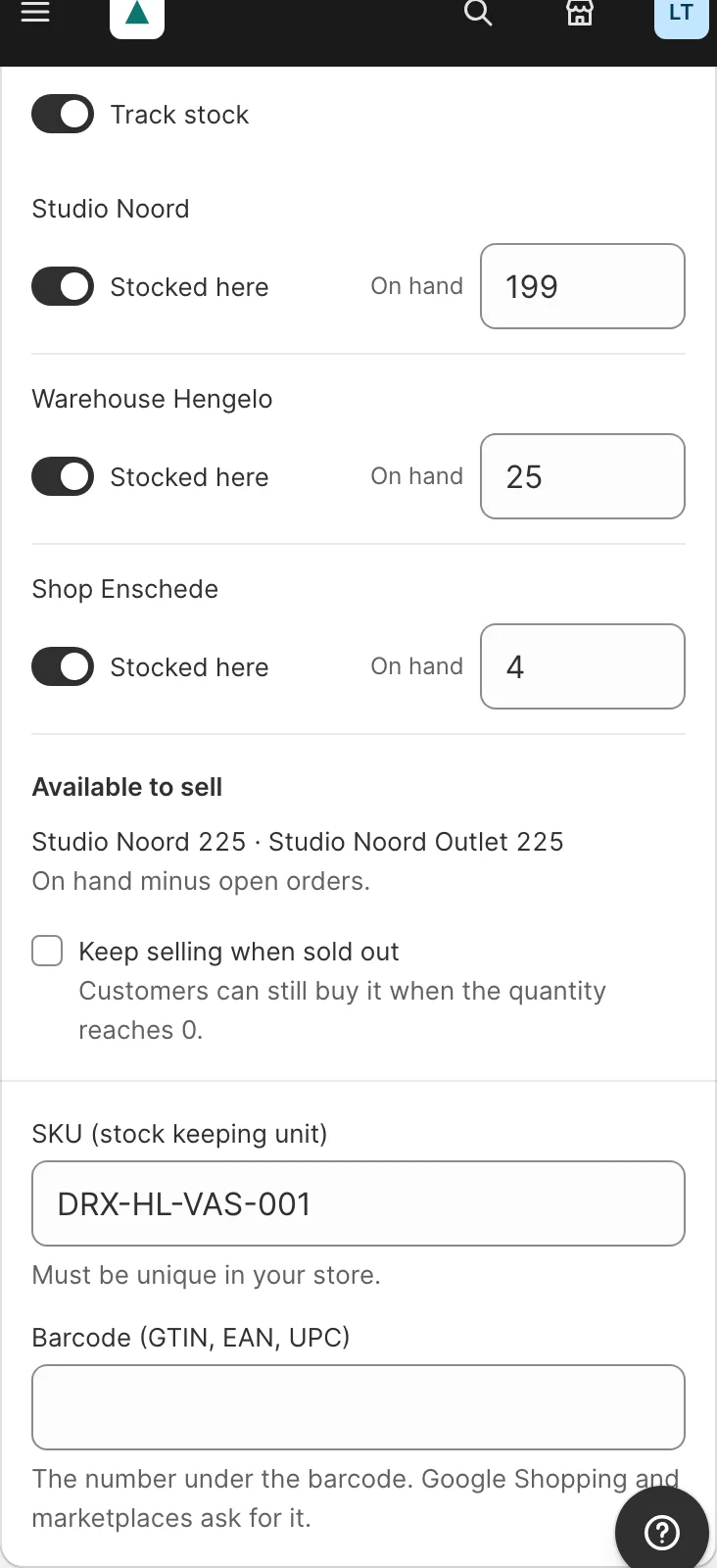

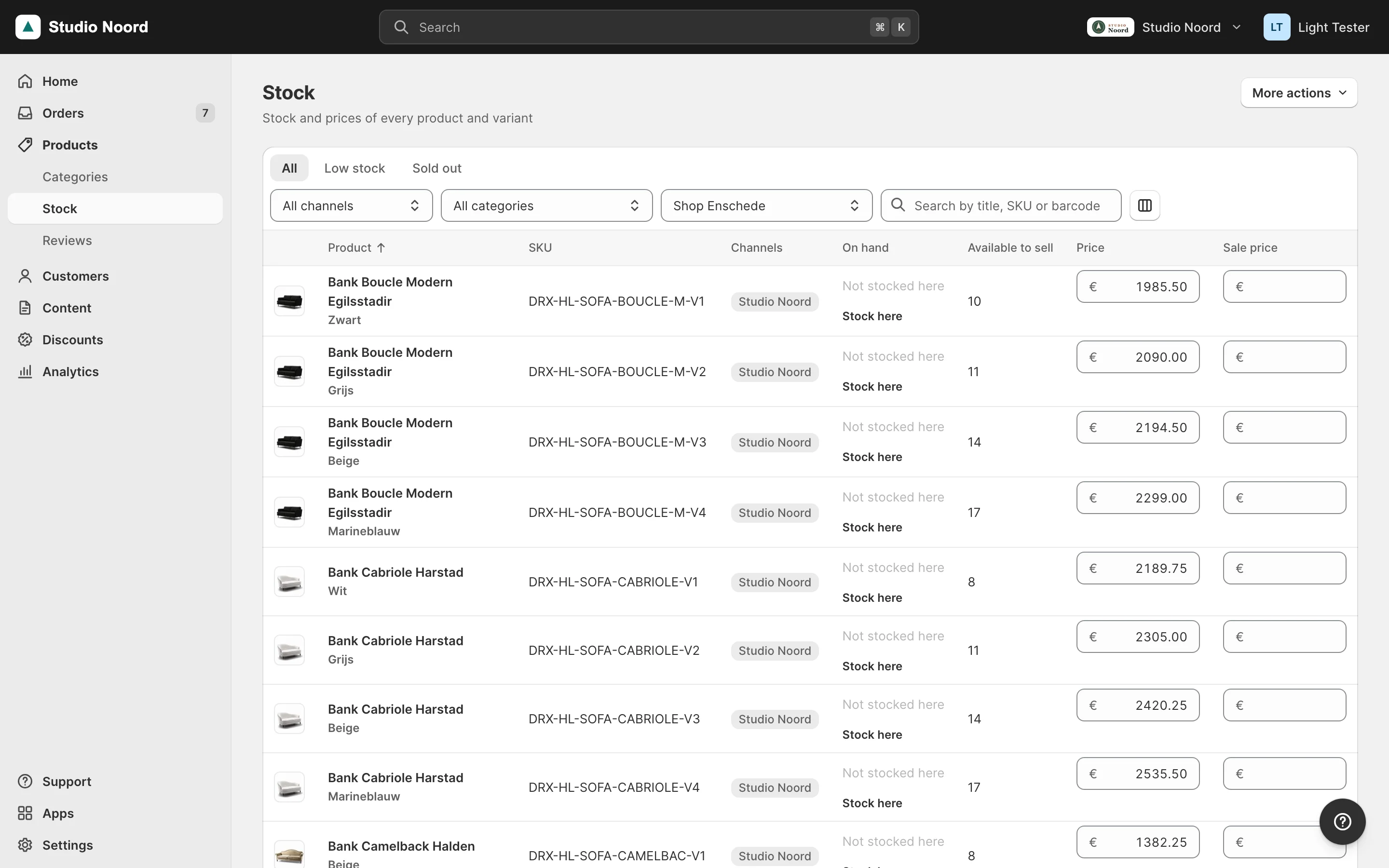

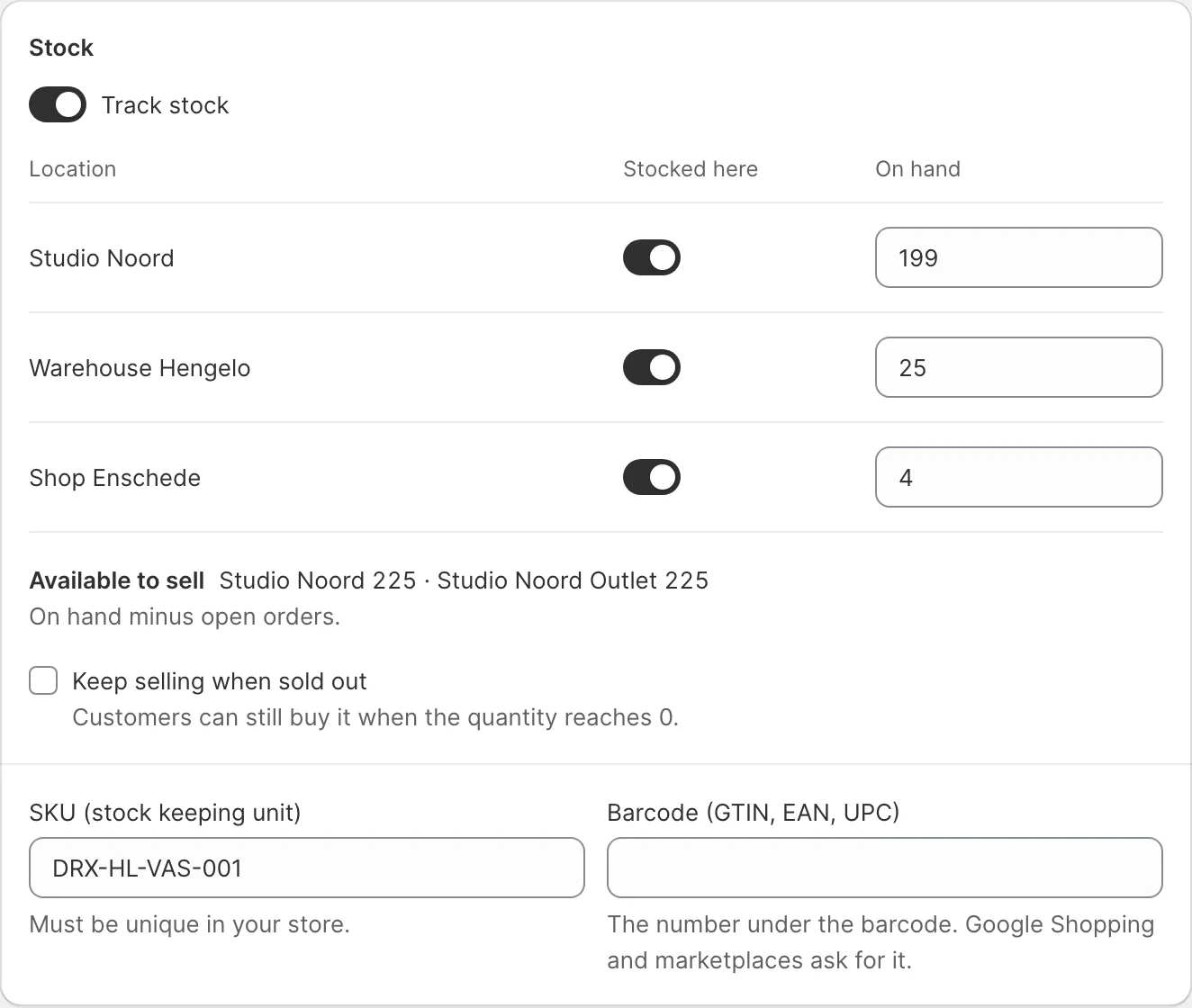

• Quantities are source items, saved through SourceItemsSaveInterface and removed through SourceItemsDeleteInterface. "Available to sell" is MSI's salable quantity of the channel's stock. Read them with GetSourceItemsBySkuInterface and GetProductSalableQtyInterface.
• Stocks. All channels sell from one stock Light makes, named "Light stock" in the advanced view, which links the locations in the drag order (the link priority). A channel gets a stock of its own only when the merchant unticks a location for it. Light changes only the stocks it made (they have a row in mrx_location_stock); a stock made in the advanced view is shown read-only.

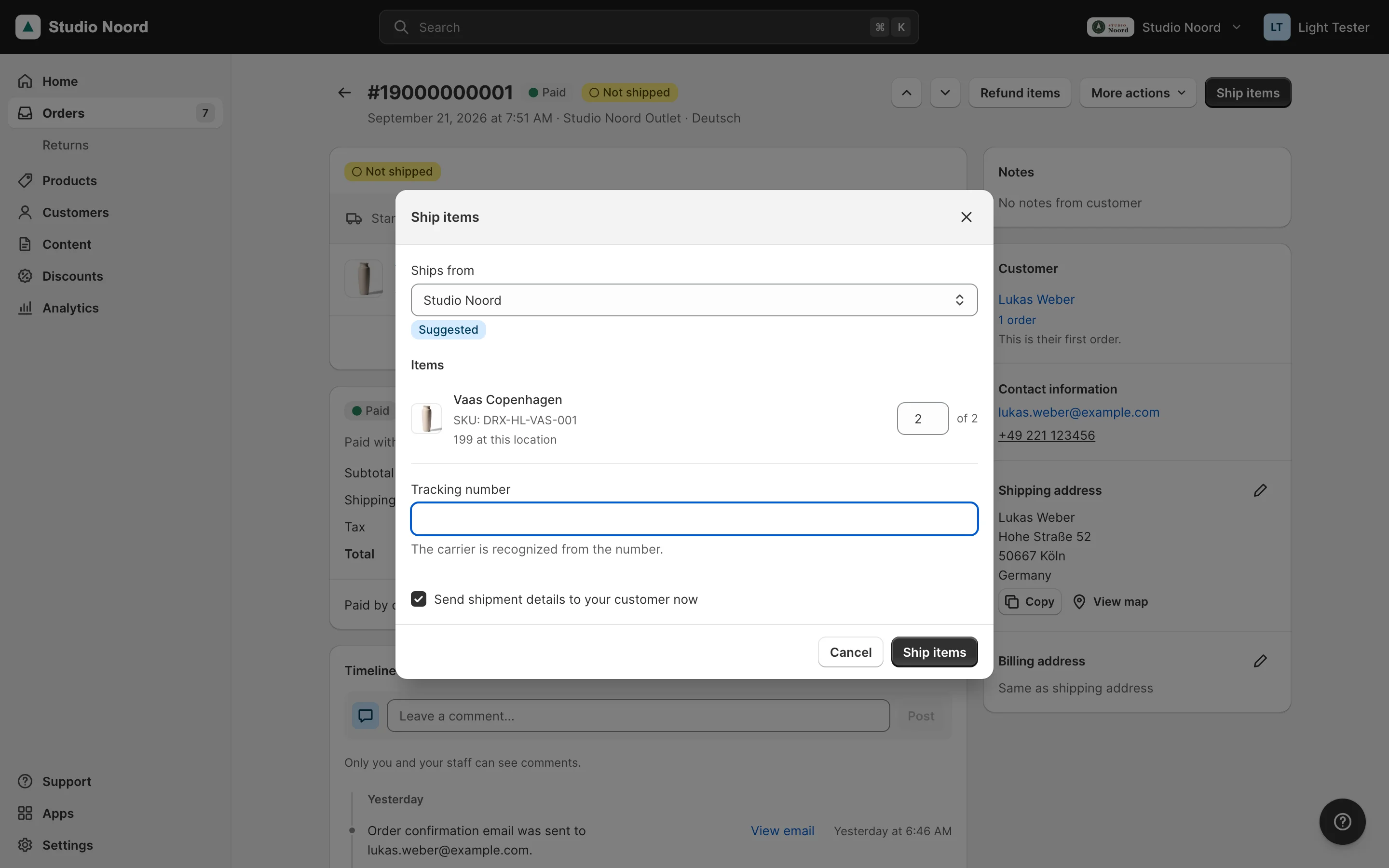

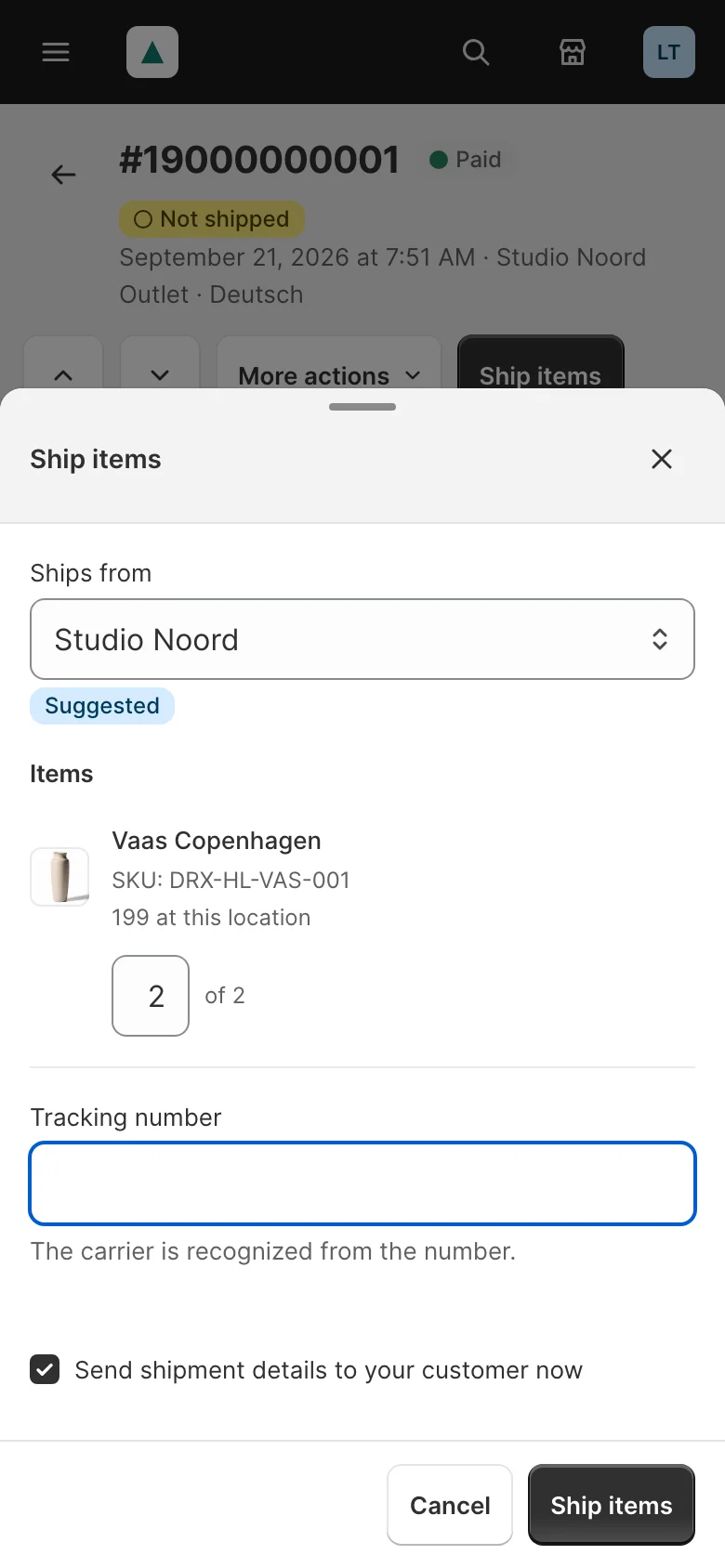

• Shipments carry the location they ship from as MSI's source_code, so MSI deducts there and a refund with restock puts the stock back there. Light's internal Mrx\Orders\Model\Service\ShipItems::ship() takes it as its last, optional argument; without one it ships from Magento's priority suggestion.

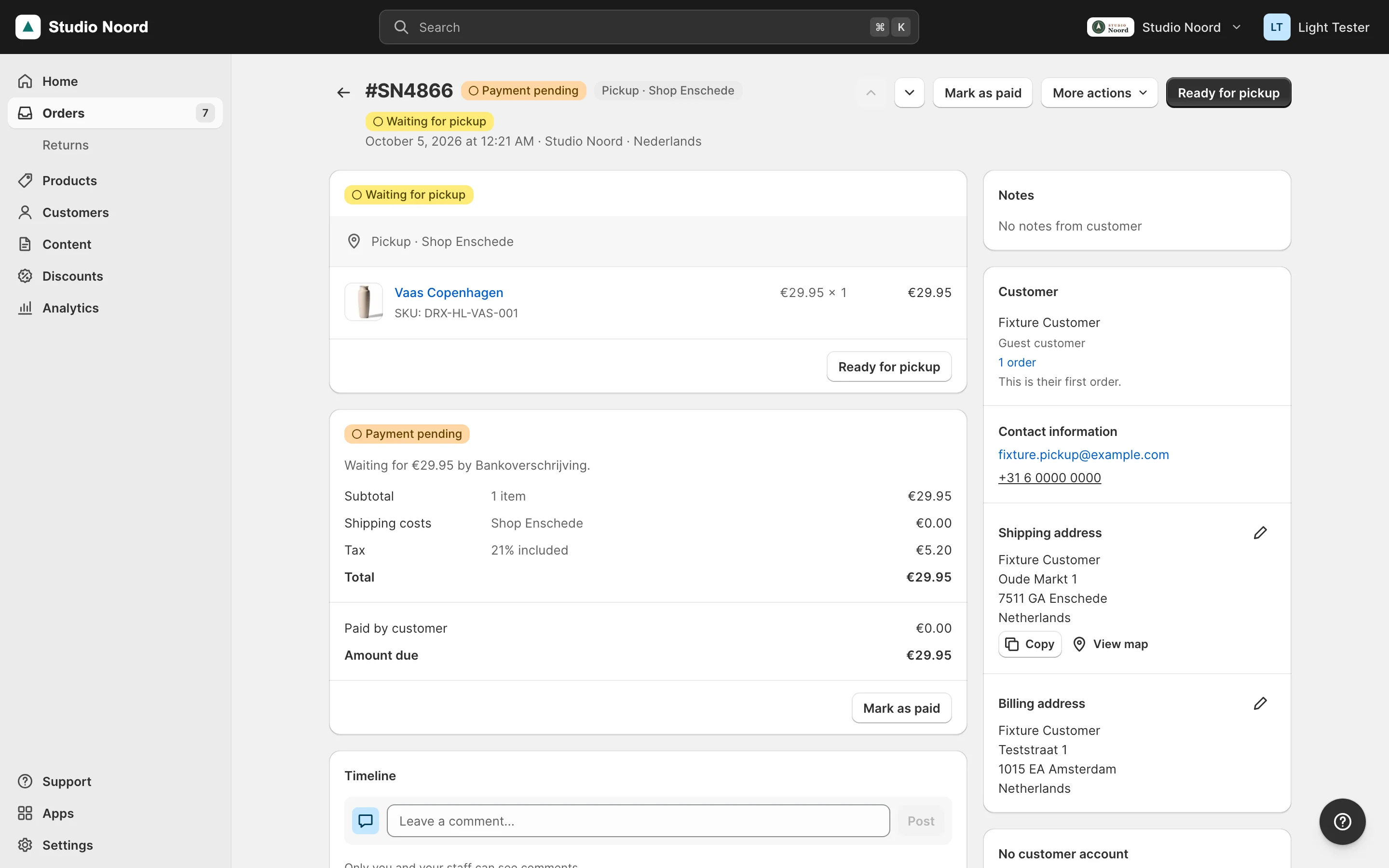

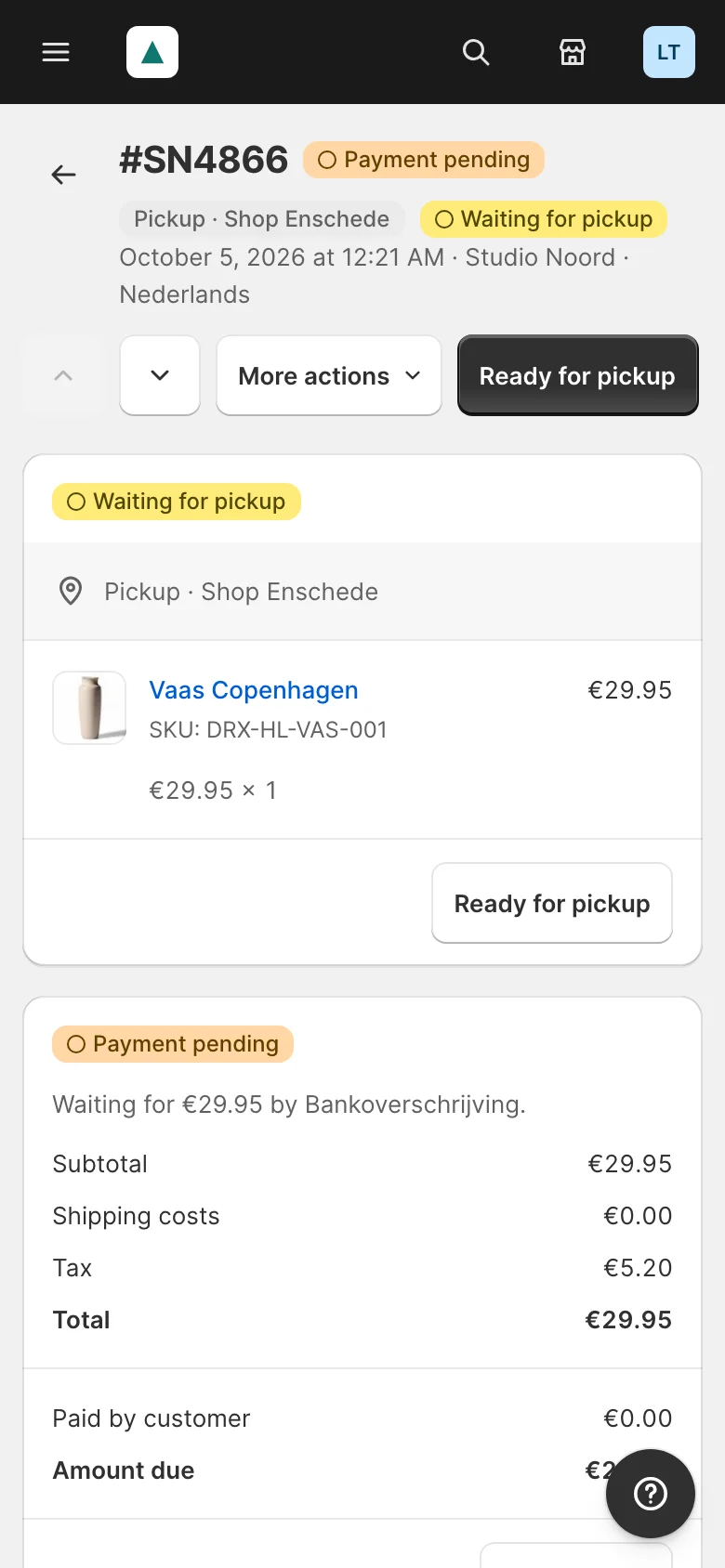

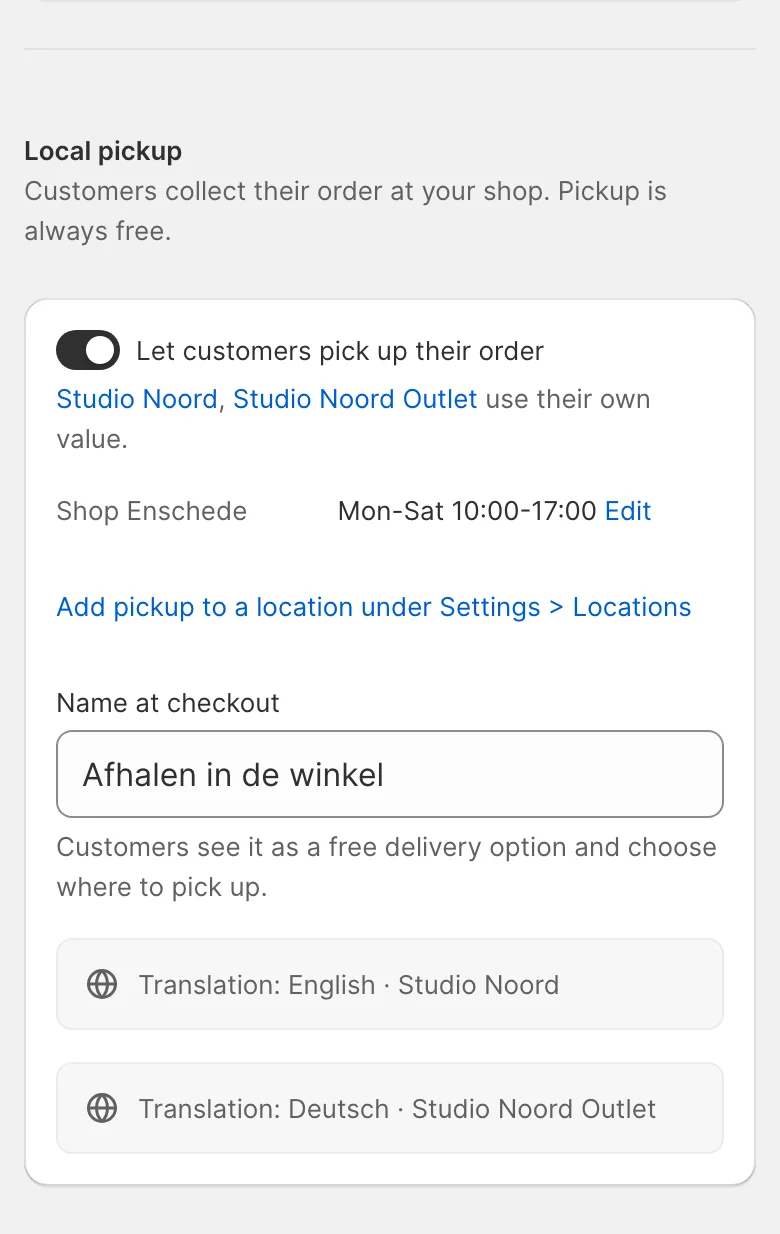

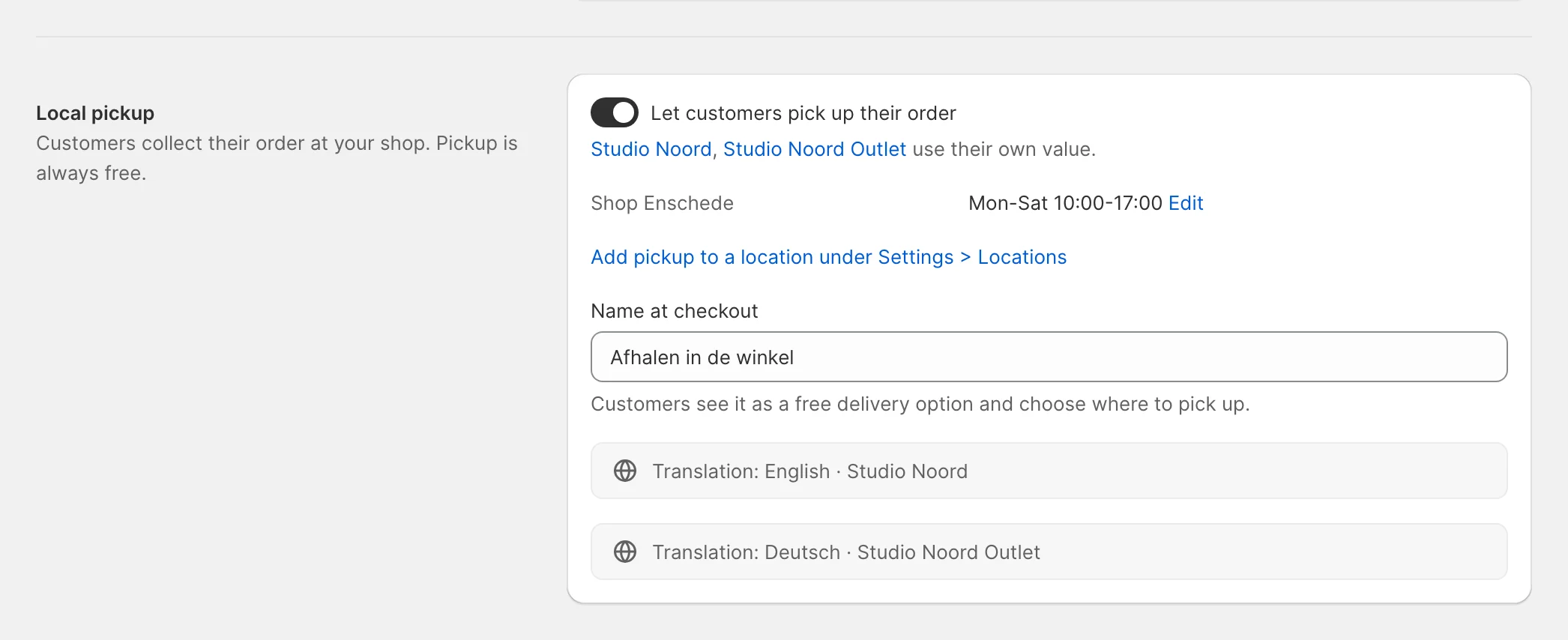

• Pickup is Magento's In-Store Pickup (carriers/instore) at the locations that offer it. "Ready for pickup" on a pickup order calls MSI's NotifyOrdersAreReadyForPickupInterface; "Picked up" is Light's own step, kept in mrx_order_pickup. With the in-store pickup modules off, a shop in locations mode keeps Light's carrier at the business address.
• Light's own tables hold only what MSI has no field for: mrx_location (drag order, opening hours, pickup instructions, "Usually ready in") and mrx_location_stock. Light writes the hours and instructions into the source's frontend_description too, which is what the checkout shows.

4. The default source after the switchCopy Anchor Link

The first "Add location" converts the shop in eight steps, each recorded in the flag mrx_locations_conversion so a stopped run resumes. The business address becomes a source, every product's quantity on Magento's default source is copied to it, the Light stock links both, the open orders' reservations and every channel move to that stock, and default goes to 0. Products that track stock get status 0 there; products that don't keep status 1, because MSI's pickup check reads their legacy stock status.

After the switch default belongs to no channel and no screen. Two things follow for your module:

• cataloginventory_stock_item.qty follows only the default source, so it reads 0. Read source items or the salable quantity instead, as for any custom stock in MSI.
• A Magento import, a REST stockItems call or a refund of an order shipped before the switch can still put stock on default. Settings > Locations and Home then show "Stock at old location: N items" with "Move to" and the first location's name, which moves it through MSI's bulk transfer.

5. The plugins Light adds on MagentoCopy Anchor Link

Three plugins on Magento, in Mrx_Locations/etc/di.xml, and none on Magento's flows:

<type name="Magento\Store\Model\ResourceModel\Website">
    <plugin name="mrx_locations_assign_website_to_light_stock" type="Mrx\Locations\Plugin\Store\AssignWebsiteToLightStock" sortOrder="-10"/>
</type>

<type name="Magento\InventoryInStorePickup\Model\ResourceModel\GetPickupLocationIntersectionForSkus">
    <plugin name="mrx_locations_pickup_in_stock_only" type="Mrx\Locations\Plugin\Pickup\InStockOnly"/>
</type>
<type name="Magento\InventoryInStorePickup\Model\SearchRequest\Area\GetDistanceToSources">
    <plugin name="mrx_locations_pickup_no_geocoder_area" type="Mrx\Locations\Plugin\Pickup\NoGeocoderArea"/>
</type>

• AssignWebsiteToLightStock: in locations mode a new channel sells from the Light stock instead of Magento's default stock, which holds nothing after the switch. It runs before Magento's assign_website_to_default_stock, which then skips the website.
• InStockOnly: the checkout offers a pickup location only when it holds every product in the cart (status 1, quantity above 0). A product that doesn't track stock or keeps selling when sold out counts as present wherever MSI found its row.
• NoGeocoderArea: with Magento's Google geocoder and no API key, a postcode or city typed at checkout lists the channel's pickup locations instead of none.

Mrx_Locations also names "Location" and Magento's checkout label "Select Store" in the pool prefer_phrases for Dutch and German, because the language packs translate them as "Plaats" / "Ort" and "Selecteer winkel" / "Store wählen".
